Trolling Motors

View as

A trolling motor lets you hold a line along a bank, follow a weed edge or work a drift without the noise of an engine spooking fish. This collection covers the electric motors we stock: an Intex 40 pound thrust transom motor and three Striker motors at 45, 60 and 90 pounds of thrust. This page explains how to size a motor to your boat, what it needs from the battery and wiring, and how to mount it.

Read More

Choosing Thrust

A common rule of thumb is at least 2 pounds of thrust for every 100 pounds of fully loaded boat weight, counting the boat, motor, battery, fuel, gear and people. Treat that as a minimum and go higher if you fish in wind, current or tidal runs, because a motor with only just enough thrust struggles exactly when you need it. On that rule, the 45 pound Striker suits a loaded boat up to roughly 2,250 pounds (about 1,020kg), the 60 pound up to about 3,000 pounds (about 1,360kg) and the 90 pound up to about 4,500 pounds (about 2,040kg). The Intex suits lighter craft, up to about 2,000 pounds (about 900kg), such as a small tinnie or inflatable.

The Range

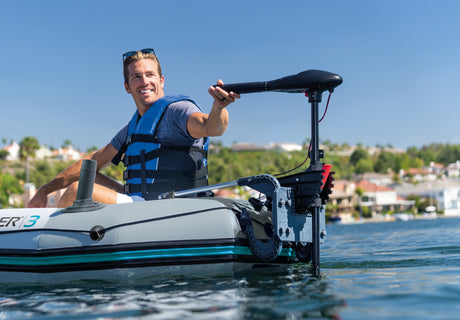

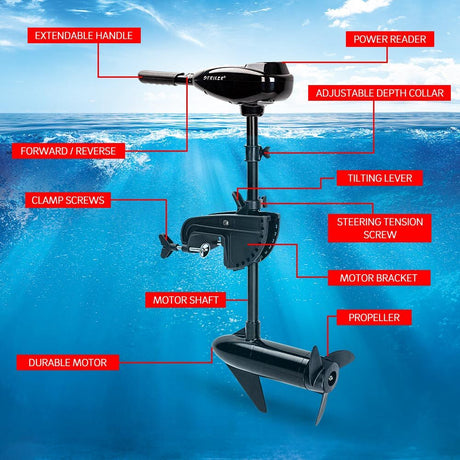

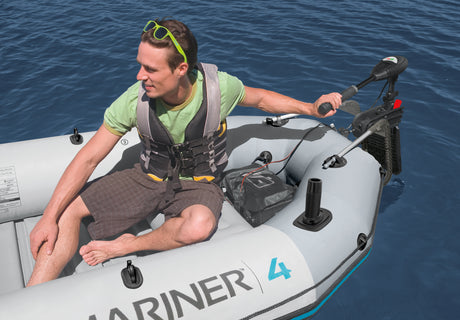

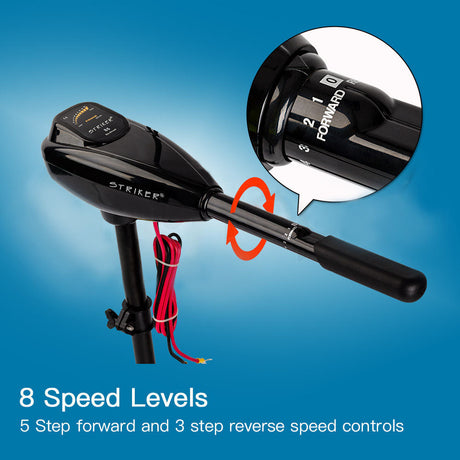

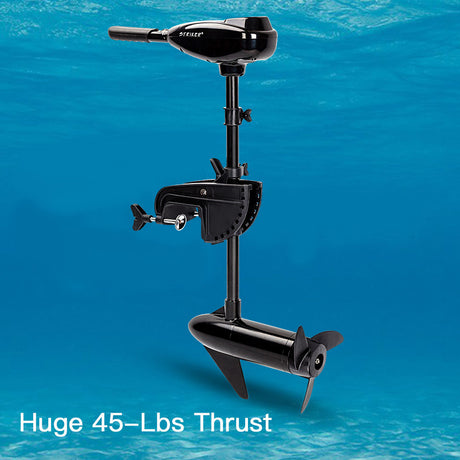

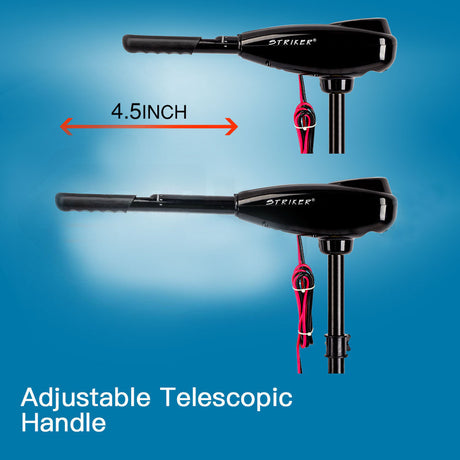

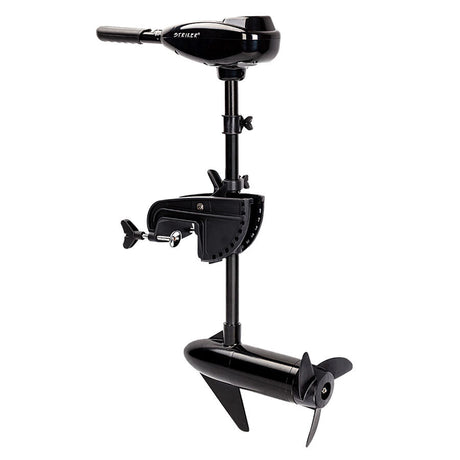

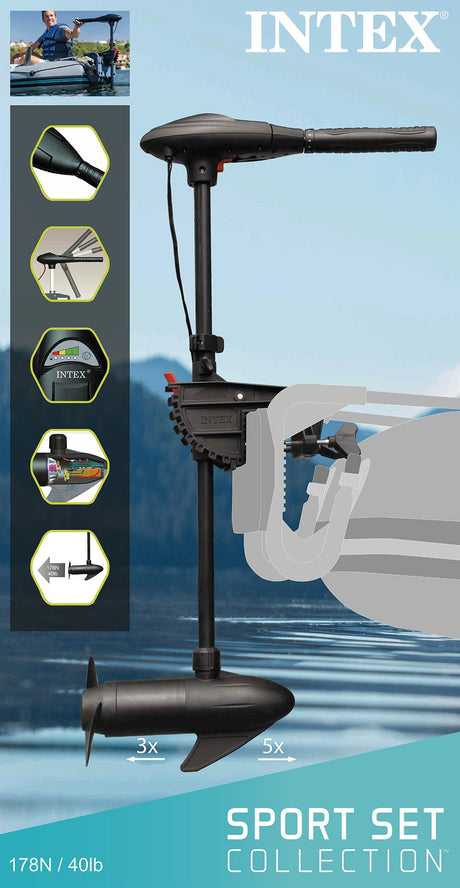

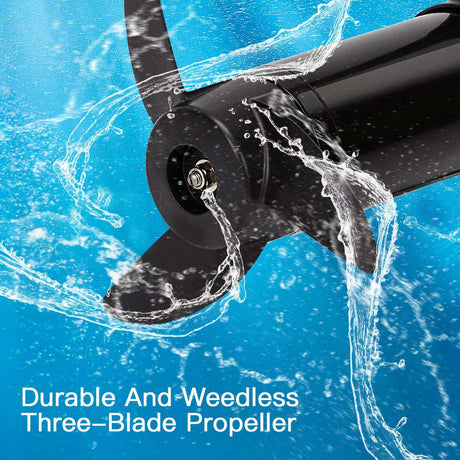

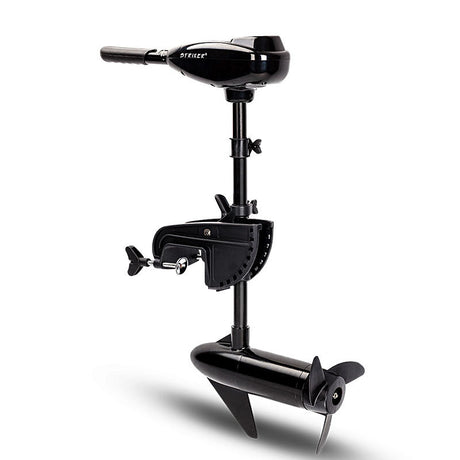

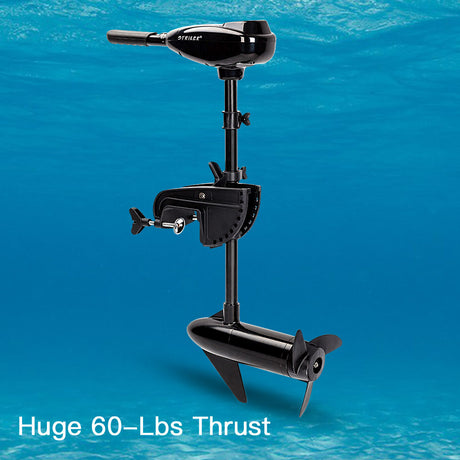

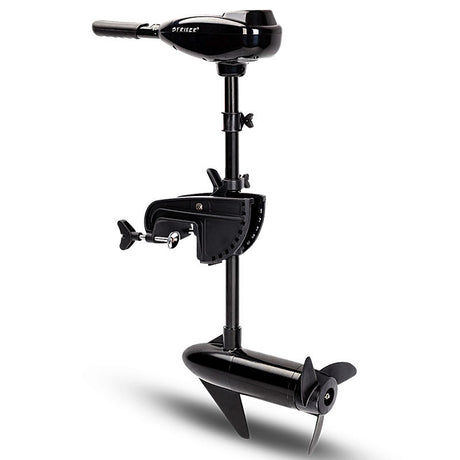

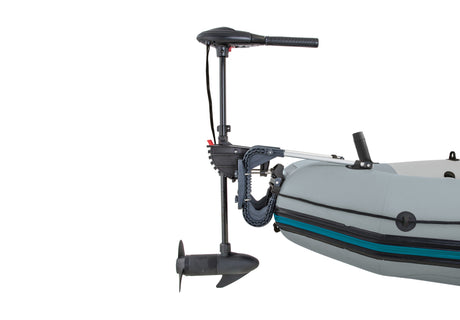

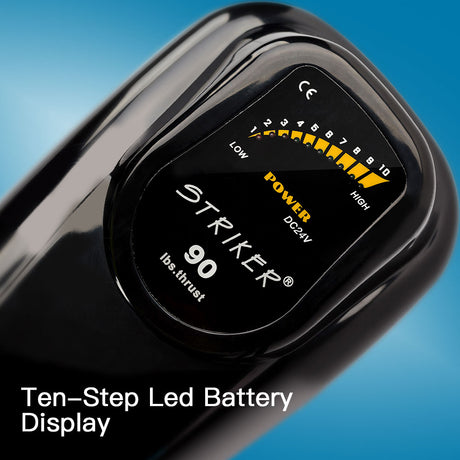

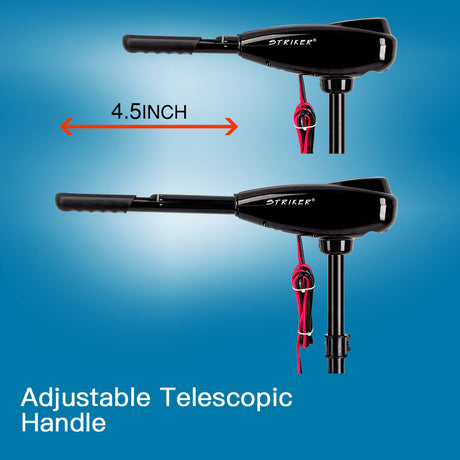

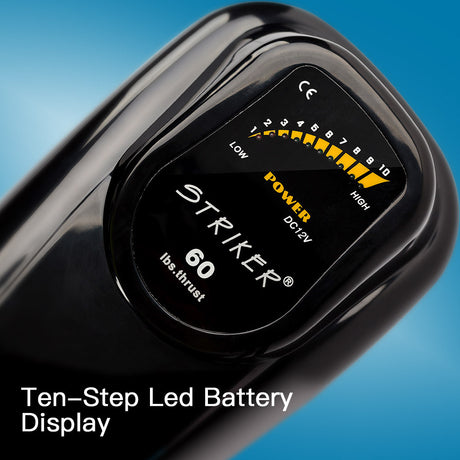

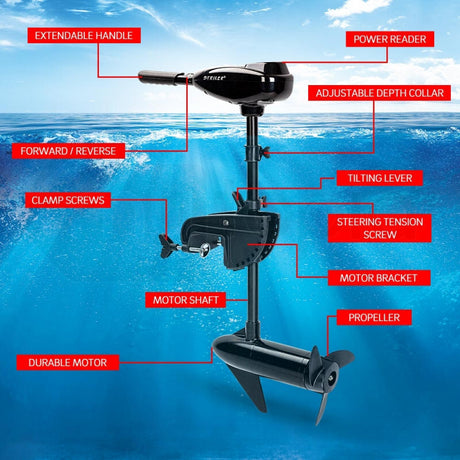

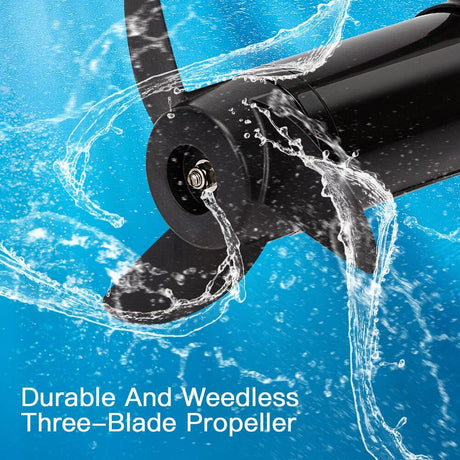

The Intex Electric Trolling Transom Motor is 40 pounds of thrust on 12 volts, with five forward and three reverse speeds, a weed escape design and a weight of 11kg. It comes with battery cables and an adjustable mounting bracket, but not the battery. The three Strikers all have a 23 inch shaft, five forward and three reverse speeds and an LED display. The 45 pound is a 12 volt motor drawing up to 34 amps and weighing 20.4kg. The 60 pound is also 12 volt, draws up to 52 amps and weighs 27.2kg. The 90 pound runs on 24 volts, draws up to 48 amps, weighs 40.8kg and has a triple blade prop. Check the maximum boat length on each product page before you buy.

Batteries and Voltage

A 12 volt motor runs from one deep cycle battery, and the 24 volt Striker needs two 12 volt batteries wired in series. Battery size sets how long you can fish. At the full 34 amp draw of the 45 pound Striker, a 100Ah battery would last a little under three hours in theory, and real run times will differ.

Wiring and Protection

A trolling motor draws a lot of current, so thin cable and loose connections cause voltage drop, heat and poor performance. Keep cable runs short and use cable rated for the current. Our cable lugs and terminals collection covers the connection side, and our circuit protection range includes breakers that sit close to the battery and protect the cable. If you are unsure about the installation, a qualified marine electrician is worth the call.

Mounting and Shaft Length

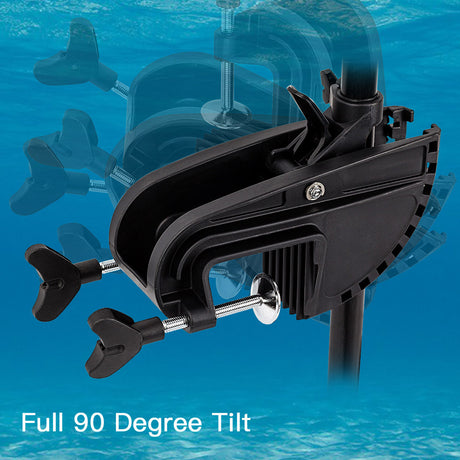

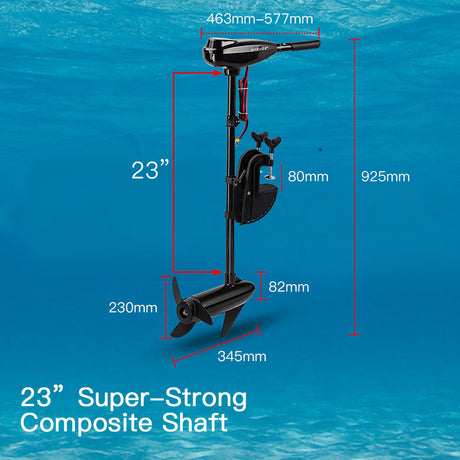

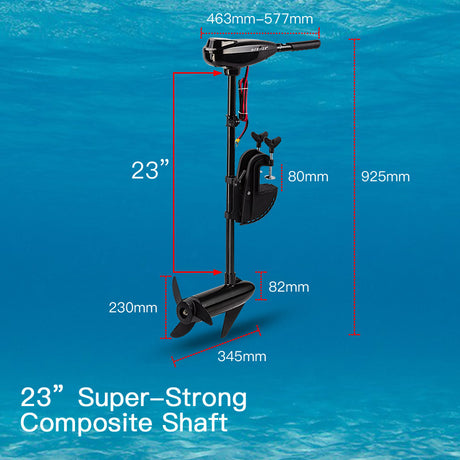

The propeller needs to sit in clean water. As a general guide, submerge the centre of the motor section at least 12 inches, and add about 5 inches of shaft if you fish rough water so the prop does not break the surface in chop. Measure from the mounting point to the waterline with the boat loaded, and compare it with the 23 inch shaft on the Strikers. Our boats collection covers the hulls these motors go on, and our boat accessories range has the fittings. If you want to hold the boat at anchor instead, that is a separate job for our electric boat anchor winches.

The Most Common Mistake

The mistake we see most often is sizing the motor to the boat’s empty weight. A boat with people, a battery and gear weighs far more than the hull alone. Work out the loaded weight, apply the rule above and go up a size if you are close. The second mistake is undersized wiring, which starves a good motor.

Frequently Asked Questions

A common rule of thumb is 2 pounds of thrust per 100 pounds of loaded boat weight, as a minimum.

No. It comes with battery cables and a mounting bracket, and you supply the battery.

It is a 24 volt motor, so it needs two 12 volt batteries wired in series.

As a general guide, at least 12 inches to the centre of the motor section, and about 5 inches more in rough water.

Kim, Managing Director of Fishing Superstore, holding a coral trout on a boat

Written by Kim, Managing Director of Fishing Superstore, with a genuine personal passion for fishing that shapes the business.
