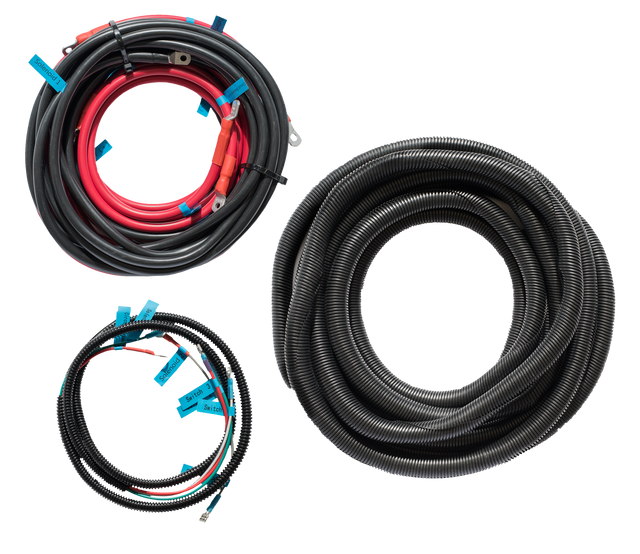

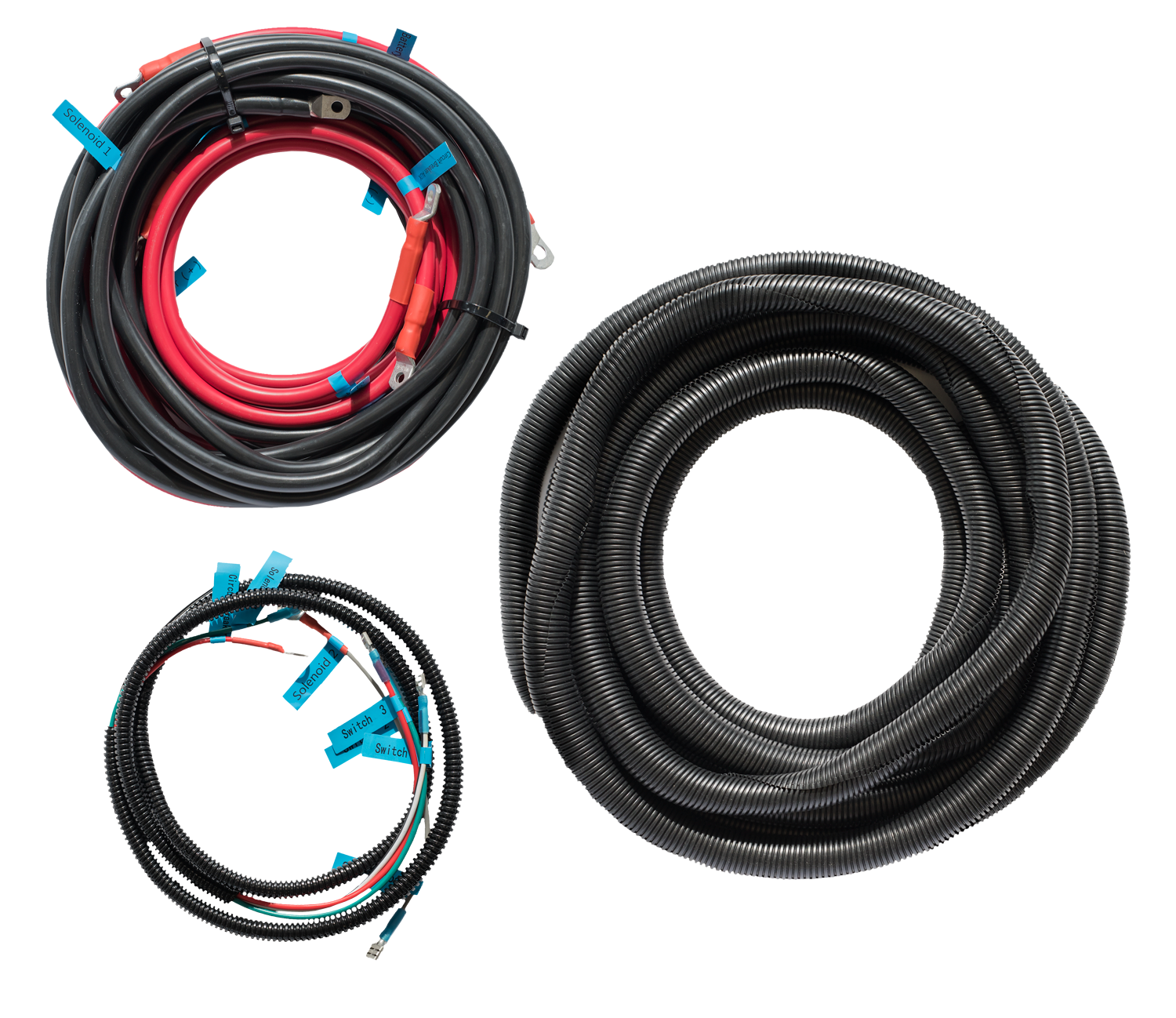

Viper Pro Series Winch Wiring Loom For 1000 Winch - Boats Up To 6 Mtrs

Complete plug-and-play wiring solution for your Viper 1000W anchor winch installation. Hand-crafted, pre-tested, and ready to install.

Marine-Grade Components Throughout

• 3 B&S (25mm²) tinned copper wire – marine grade
• Blind tinned copper lugs
• Silicone-impregnated marine heat shrink
• Fully tested before shipping

Easy Installation

• Every connector is labeled for simple installation
• Connect "A" to "A" and "B" to "B" – no wiring diagram needed
• Includes flexible conduit for clean cable routing
• 1.5M switch loom included

Cable Specifications for Boats Up To 6M:

• Battery to Circuit Breaker: 4.5M
• Battery to Solenoid: 5.5M
• Circuit Breaker to Solenoid: 1.0M
• Solenoid to Winch Motor: 2.5M + 2.5M
• Switch Loom: 1.5M

Note: Viper winch motors come with 1M of 3 B&S cable pre-attached, giving you 3.5M total from solenoid to motor.

Installation Tip
Install your winch and loom into the boat before fitting other components. Cable lengths suit most boats up to 6 meters, but individual layouts may require component relocation.

What You Need To Complete Installation:

• Basic marine electrical tools
• Circuit breaker (not included)
• Battery connection hardware

Professional-quality wiring without the professional installation cost. Order the correct loom length for your boat and complete your Viper winch installation with confidence.
